Condition: New
Vendor Part Number: C9200L-24P-4G-E
Category : Network Switches
Brand : CISCO
Description : Catalyst 9200L 24-port PoE+, 4 x 1G, Network Essentials, Catalyst 9200 Series Switch
Dimensions :
| Weight |
9.59 lb |
| Height |
1.7 in |
| Length |
17.5 in |
| Width |
11.3 in |
Lead Time: 2-5 weeks
Description

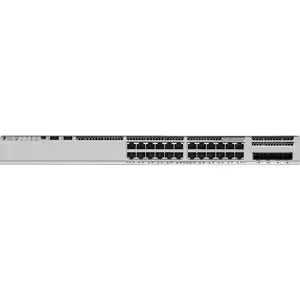

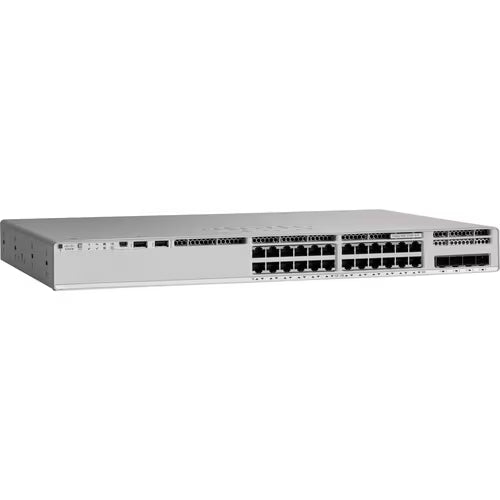

Cisco Catalyst C9200L-24P-4G Ethernet Switch - 24 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 370 W PoE Budget - Twisted Pair, Optical Fiber - 1U - Rack-mountable - Lifetime Limited Warranty
Extend intent-based networking everywhereCisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree,
Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation, and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with the open APIs of Cisco IOS XE and the programmability of the UADP ASIC technology, and the Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
Features
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Rack mounting enables you to organize wires & secure cables for professional installation
- Managed switch provides a reliable foundation for your network
- Gigabit Ethernet port for ultra-fast network speeds
- Cascade to other network devices through the uplink port to expand your local area network
- Stack port provides an easy and hassle-free way to extend your office network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Features 24 networking ports to establish large network
- Effectively reduces downtime with improved network performance
Technical Specs
Management & Protocols
Network & Communication
Power Description
| Power Source |
Power Supply |
| Redundant Power Supply Supported |
Yes |
| PoE Budget |
370 W |
I/O Expansions
| Expansion Slot Type |
SFP (mini-GBIC) |
| Number of SFP Slots |
4 |
| Shared SFP Slot |
No |
| Total Number of Expansion Slots |
4 |
General Information
| Product Type |
Ethernet Switch |
| Manufacturer Part Number |
C9200L-24P-4G-E |
| Manufacturer |
Cisco Systems, Inc |
| Product Model |
C9200L-24P-4G |
| Product Name |
Catalyst C9200L-24P-4G Ethernet Switch |
| Product Line |
Catalyst |
| Product Series |
9200 |
| Brand Name |
Cisco |
Media & Performance
| Network Technology |
10/100/1000Base-T |
| 1000Base-X |
| Ethernet Technology |
Gigabit Ethernet |
| Media Type Supported |
Twisted Pair |
| Optical Fiber |
Interfaces/Ports
| Modular |
Yes |
| Uplink Port |
Yes |
| Stack Port |
Yes |
| Total Number of Network Ports |
24 |
| Port/Expansion Slot Details |
24 x Gigabit Ethernet Network |
| 4 x Gigabit Ethernet Uplink |
Physical Characteristics
| Form Factor |
Rack-mountable |
| Compatible Rack Unit |
1U |
