CISCO

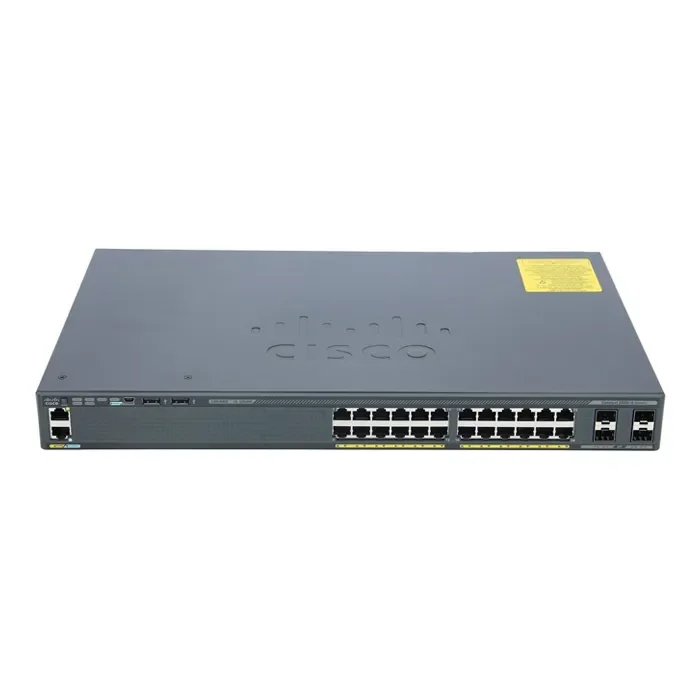

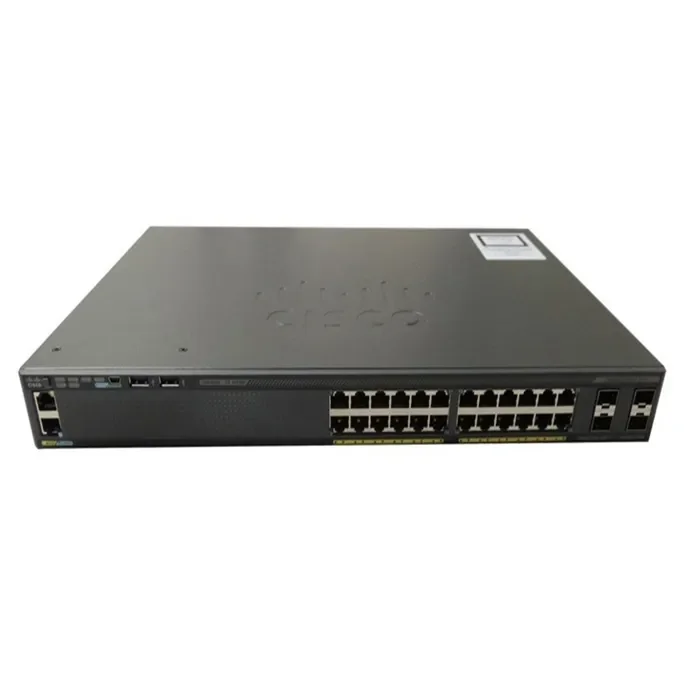

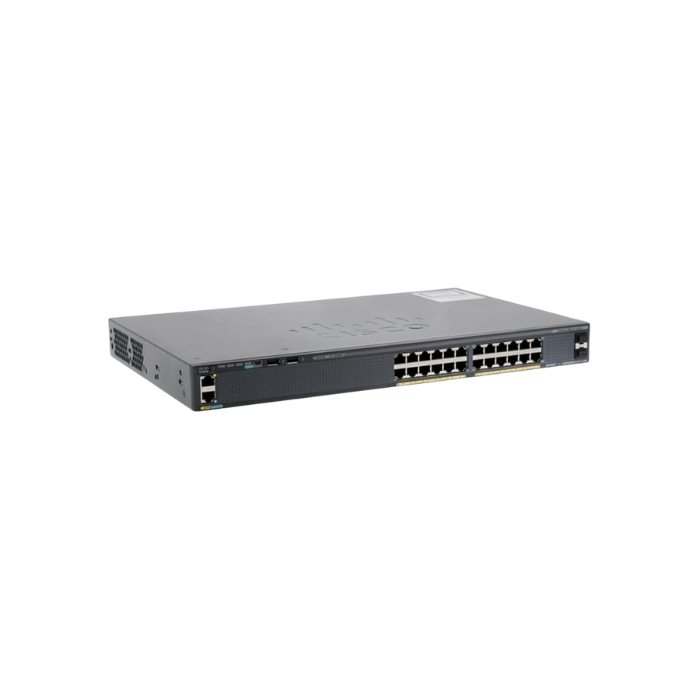

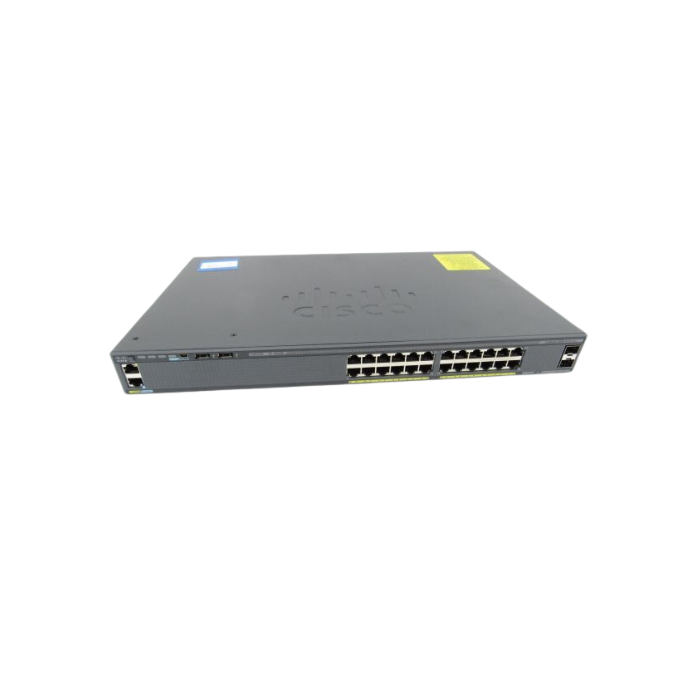

CISCO WS-C2960X-24TS-LL Catalyst Ethernet Switch 2960-X 24 GigE, 2 x 1G SFP, LAN Lite
- Regular price
- $621
- Regular price
- $621
Category: Network Switches
Condition: New
Incoterms: Ex-Works Singapore
Product Description
Condition: NEW
Vendor Part Number: WS-C2960X-24TS-LL
Category: Network Switches
Brand: CISCO
Product Type: Switch & Hub Components

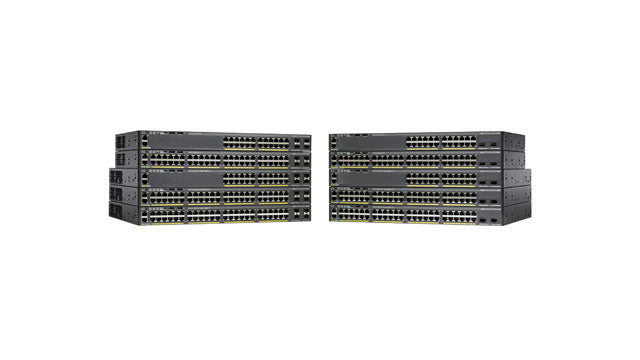

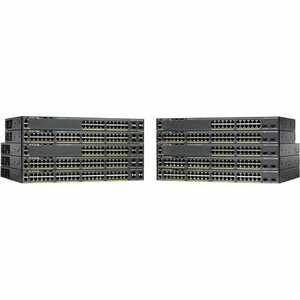

Description: Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.
- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
Dimensions:
| Weight | 5.33 (KG) |
| Height | 56.0 (CM) |
| Length | 41.0 (CM) |
| Width | 17.0 (CM) |
| Range | Switches & Bridges |  |
| Part No. | WS-C2960X-24TS-LL | |
| Model | Cisco Catalyst 2960X-24TS-LL Ethernet Switch - 24 Ports - Manageable - 2 x Expansion Slots - 10/100/1000Base-T - 24, 2 x Network, Expansion Slot - Twisted Pair - Gigabit Ethernet - 2 x SFP Slots - 2 Layer Supported - Power Supply - Redundant Power Supply - 1U High - Rack-mountable, DesktopLifetime Limited Warranty |
Overview |
|
General Information |
|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C2960X-24TS-LL |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 2960-X |
| Product Model | 2960X-24TS-LL |
| Product Name | Catalyst 2960X-24TS-LL Ethernet Switch |
| Marketing Information |
Catalyst 2960-X series Software Features All Catalyst 2960-X Series Switches use a single Universal Cisco IOS Software Image for all SKUs. Depending on the switch model, the Cisco IOS image automatically configures either the LAN Lite, LAN Base, or IP Lite feature set. LAN Lite models have reduced functionality and scalability for small deployments with basic requirements. Cisco Catalyst 2960-X Family of Switches are available with the LAN Base and LAN Lite feature sets and Catalyst 2960-XR Family of switches are available IP Lite feature sets. Note that each switch model is tied to a specific feature level; LAN Lite cannot be upgraded to LAN Base and LAN Base cannot be upgraded to IP Lite. |
| Product Type | Ethernet Switch |
Features |
|
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Token Ring Port | No |
| LRE Port | No |
| Bypass | No |
| Modular | No |
| Management Port | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 24 |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5 |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Number of Total Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | No |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Management |
|
| Memory | |
| Standard Memory | 512 MB |
| Memory Technology | DRAM |
| Flash Memory | 64 MB |
| Reliability | |
| MTBF | 622350 Hour |
| Power Description | |
| PoE (RJ-45) Port | No |
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Power Source | Power Supply |
| Redundant Power Supply | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Form Factor | Desktop |
| Height | 1.8" |
| Width | 17.5" |
| Depth | 11" |
| Weight (Approximate) | 8.20 lb |
| Miscellaneous | |
| Certifications & Standards |
IEEE Standards:
|
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS |
| Warranty | |
| Limited Warranty | Lifetime |
Specification |
|
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Modular | No |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Number of Total Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | No |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Form Factor | Desktop |
| Height | 1.8" |
| Width | 17.5" |
| Depth | 11" |
| Weight (Approximate) | 8.20 lb |
| Miscellaneous | |
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS |
| Warranty | |
| Limited Warranty | Lifetime |
