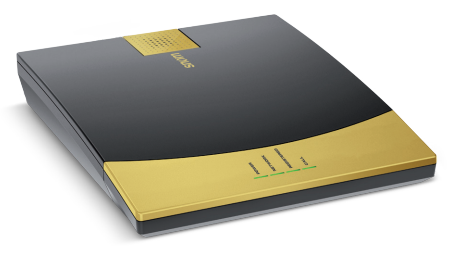

SNOM ONE Mini IP PBX

Condition : USED

Vendor Part Number : SNM_ONEMINI

Category : OTHERS

Brand : SNOM

Description : 3373 - Snom ONE Mini IP PBX

Dimensions :

• Full featured IP-PBX
• Low power consumption
• No moving parts
• 20 extensions
• Cell phone integration
• PoE connectivity
• PSTN connectivity through SIP trunks
• IPv6 ready

The snom ONE mini is the ideal telephony system for small businesses and home offices requiring a compact, yet powerful, on-premise IP-PBX. The sleek, pint-sized, solid state device supports 20 extensions and offers the full range of snom ONE telephony features, as well as complete support for the award-winning snom IP desktop and wireless phones.

Keeping up with the demands of sustainability, the snom ONE mini is based on a low-power, high-performance ARM processor, ensuring significant energy savings compared to traditional IP-PBXs. Requiring less than 60 kWh per year, compared to 876 kWh per year for a PC-based IP-PBX, the snom ONE mini is the clear winner when it comes to efficient power utilization. Equipped with Gigabit Ethernet connectivity, the device can be powered by an external power supply or PoE to minimize cabling. Furthermore, the solid state design of the device means no moving parts and thereby increases the stability of the system and reduces noise pollution in the small office environment.

Hardware Specifications
• CPU: 1.4 GHz ARM
• 512 NAND Flash
• 512 MB DDR2
• USB 2.0 port
• Ethernet: RJ45, IEEE 802.3/Gigabit
• PoE: IEEE 802.3af, Class 2
• Power: 5V 1A max.
• Power adapter (included)
- Input: 100–240V AC ~0.3A
- Output: 5V 2A max.
Dimensions
165 mm (L) x 142 mm (W) x 28 mm (H)
(6.5" (L) × 5.6" (W) × 1.1" (H))

General Information
• Ideal for systems up to 20 extensions
• Easy installation, no additional programs required
• Address book integration
• Caller-ID based agent preference routing
• Multiple call redirection events and destinations
• User input key handling
• Dynamic call routing (e.g., day/night mode)
• Web-based agent activity tracking
• Web-based“ "call monitoring
• MoH mixing with announcements

Advanced Functionality
• Auto attendants, hunt groups, agent groups
• Service flags, paging
• Cell phone twinning
• Conference rooms
• Music on hold support
• Microsoft Exchange 2007/2010 UM support
• Full system monitoring

EXTENSION FEATURES
• Extension-specific dial plan, time zone and language support
• Multiple extension alias names
• ANI assignments
• Hot desking and call redirection
• Remote worker support
• Call pickup
• Park orbit
• Picture upload
• Emergency call recording
• Intercom (2-way) support
• Emergency dialing support
• EPID support for E911
• Call number limitation
• Multiple registrations per extension
• Call screening
• Presence and monitoring (BLF)

MAILBOX
• Multiple prompts and name recording (from extension or web interface)
• Voicemail to email
• Moving and copying of messages to extensions and groups
• Message playback (FF and rewind)
• Message waiting support (MWI)
• PIN-code−based login
• Built-in Voicemail server

SIP TRUNKING
• Multiple Trunks per domain
• DID-based inbound routing
• Registration for ITSP and PSTN gateways
• CO-line emulation
• Microsoft Exchange Support
• Inbound DTMF detection

PROVISIONING
• Template based provisioning
• Provisioning of firmware
• Multicast plug and play
• TFTP, HTTP, and HTTPS support

SECURITY FEATURES
• SIP TLS transport layer
• SRTP media encryption
• HTTPS provisioning
• Selectable password policy
• Automatic blacklisting after unsuccessful authentication attempts (DoS Defense)
• Certificate support (ability to upload custom/customer-specific certificates)

NETWORKING SUPPORT
• Far-end NAT traversal with mini session border controller
• Multiple IP-address routing in SIP
• IPv4 and IPv6 support
• Multiple SIP, HTTP, and TFTP ports; all ports can be bound to specific IP addresses
• QoS definition
• Support for DNS A, AAAA, SRV and NAPTR
• ENUM support

CRM INTEGRATION
• CSTA support
• Use of favorite address book tools
