Condition : USED
Vendor Part Number : SNM_UC600
Category : IP Telephone
Brand : SNOM
Description : 2882 - Snom UC600 IP Phone for Microsoft Lync
Dimensions :
Weight |
1.4 (KG) |
Height |
20.0 (CM) |
Length |
14.0 (CM) |
Width |
25.0 (CM) |

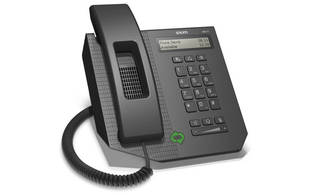

Snom UC600 Optimised for Microsoft Lync
The snom UC600 is a traditional desk phone designed to make PC calls. It offers various functions that are essential for everyday working life. Not only does the snom UC600 connect traditional phone functionality and PC communications it also provides easy plug and play via an integrated USB cable. The snom UC600 is fully optimised for Microsoft® Lync and immediately adopts the registration information of the Microsoft® Lync Communicator.
Features
- Two-line backlit LCD display
- Redial key, flash key, delete key
- Volume control
- Microphone mute key
- Headset key
- Speakerphone key
- Presence/status light
Key benefits
• Familiar traditional phone that is easy to use
• Facilitates call handling from phone to PC
• Speakerphone and headset provide hands-free opportunity
• Includes standard keys to control incoming calls, volume or speakerphone
• Backlit LCD display indicates user‘s online status, incoming caller ID and time
• Excellent voice quality
• Improved presence indication
• Ease of use
GENERAL FEATURES
• Size:
Handset: 19.05 x 5.08 x 1.91 cm (7.5 x 2.0 x 0.75 in)
Cradle: 8.89 x 13.97 x 12.7 cm (3.5 x 5.5 x 5.0 in)
• Weight: 1.06kg
• Safety: IEC 60950-1:2005
• Certifications: FCC Class B, CE Mark, CSA Mark
• Power consumption: Via the USB connection to the PC (USB 2.0, < 500mA 5V) Device Controls and Keypad
• 4x3 Dialpad
• Redial key
• Flash Key
• Delete Key
• Mute/un-mute key
• Speaker on/off key
• Handset/headset key
• Volume up/down key
• LED Indicators
• Off hook indicator
• Voice messaging indicator
• Speakerphone indicator
• Headset indicator
• Call forwarding indicator
• Multi-color LED presence indicator
Audio
• TIA-920
• Frequency response: 200 – 7kHz
• >58dB [200, 7000] Hz
• Dynamic range: >80 dB (@ 1kHz)
• Total Harmonic Distortion + Noise: <3% (@ 200 - 7kHZ)
• Auxiliary Audio Output
• RJ-22 headset jack with built-in amplifier
Audio Enhancements
• Automatic Gain Control
• Dynamic Noise Reduction
• Acoustic Echo Cancellation Minimum System Requirements
• Microsoft Windows XP or Windows Vista
• PC with Office Communicator 2007 R2 version 3.5.6907.37 or a later
version installed
• One available USB 2.0 compliant connection
Environmental Requirements
• Temperature: 0°C to 40°C (32°F to 104°F)
• Relative Humidity: 95% max (non- condensing)
• Altitude: -304.8 meter to 3962.4 meter (-1000 feet to 13,000 feet)
• Light Exposure: Fluorescent overhead lighting and window filtered daylight
(typical offices)
TSAnet
• Device makers and MS participate in common support infrastructure (TSAnet)
for rapid resolution of support tickets
snom UC600 ships With:
• snom UC600 base
• Handset
• 1.8 m (6 ft.) handset curly cord
• Captive USB cable
• Quickstart Guide
USER INTERFACE
• Redialing last number dialed
• Holding/ unholding call
• When dialing: Deleting entire number
• Delete last digit entered on keypad
• Reject incoming call
• Turning speakerphone on and off
• Selecting the headset as the audio device
• Muting/ unmuting microphone
• Adjusting volume
